DESIDE Structure Icing Indicator

The DESIDE Structure Icing indicator assesses the risks to the structures, such as ships, due to atmospheric icing from freezing sea spray. The rate of ice build-up due to super-cooled sea spray freezing on contact with surfaces is a function of the air and sea surface temperatures, the wind speed, and the saltwater freezing point.

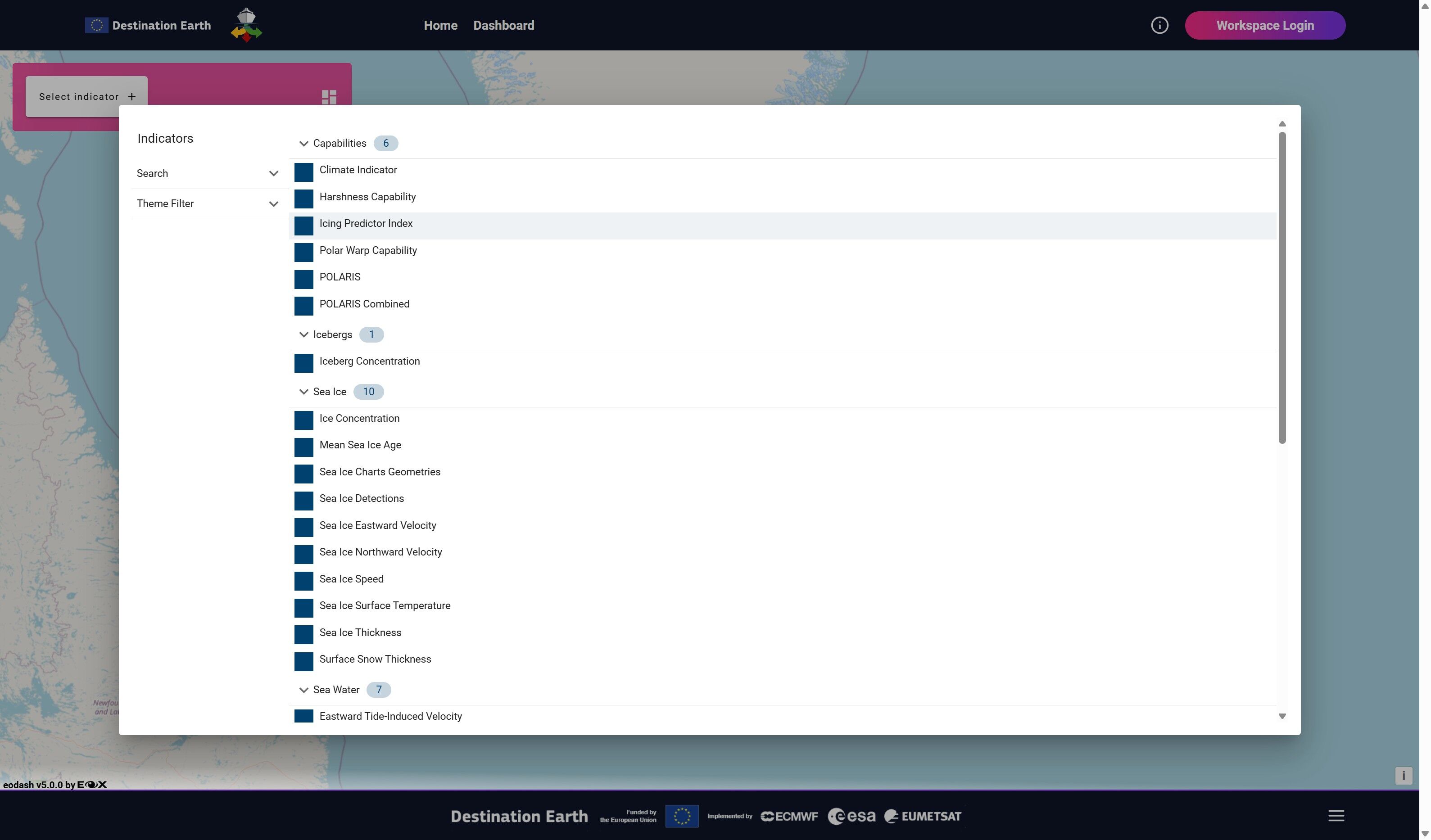

1. Select “Structure Icing Indicator”

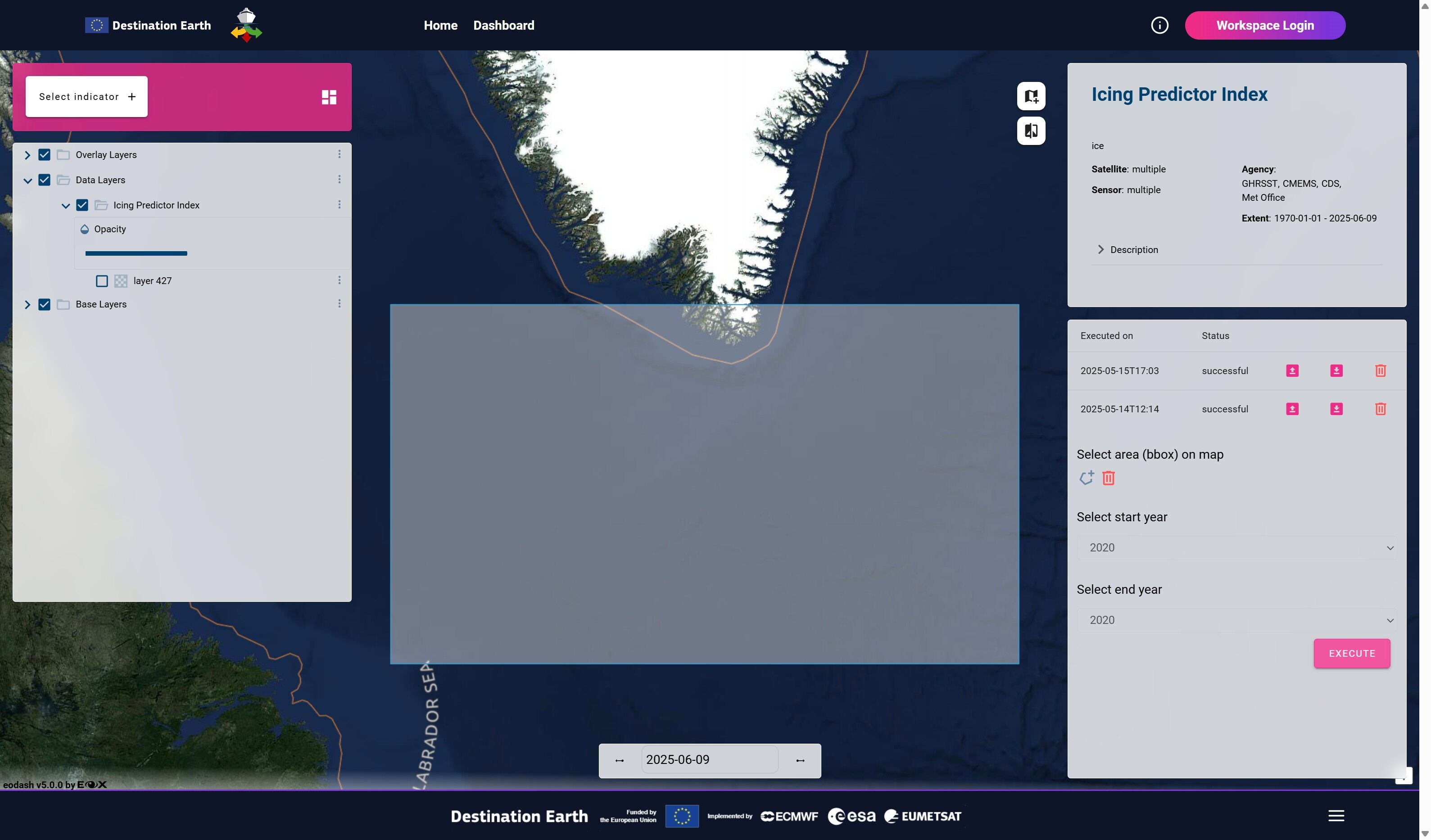

2. Use the “Select area on map” tool …

3. … to draw an area of interest for the analysis.

4. Choose a start and end year for the analysis.

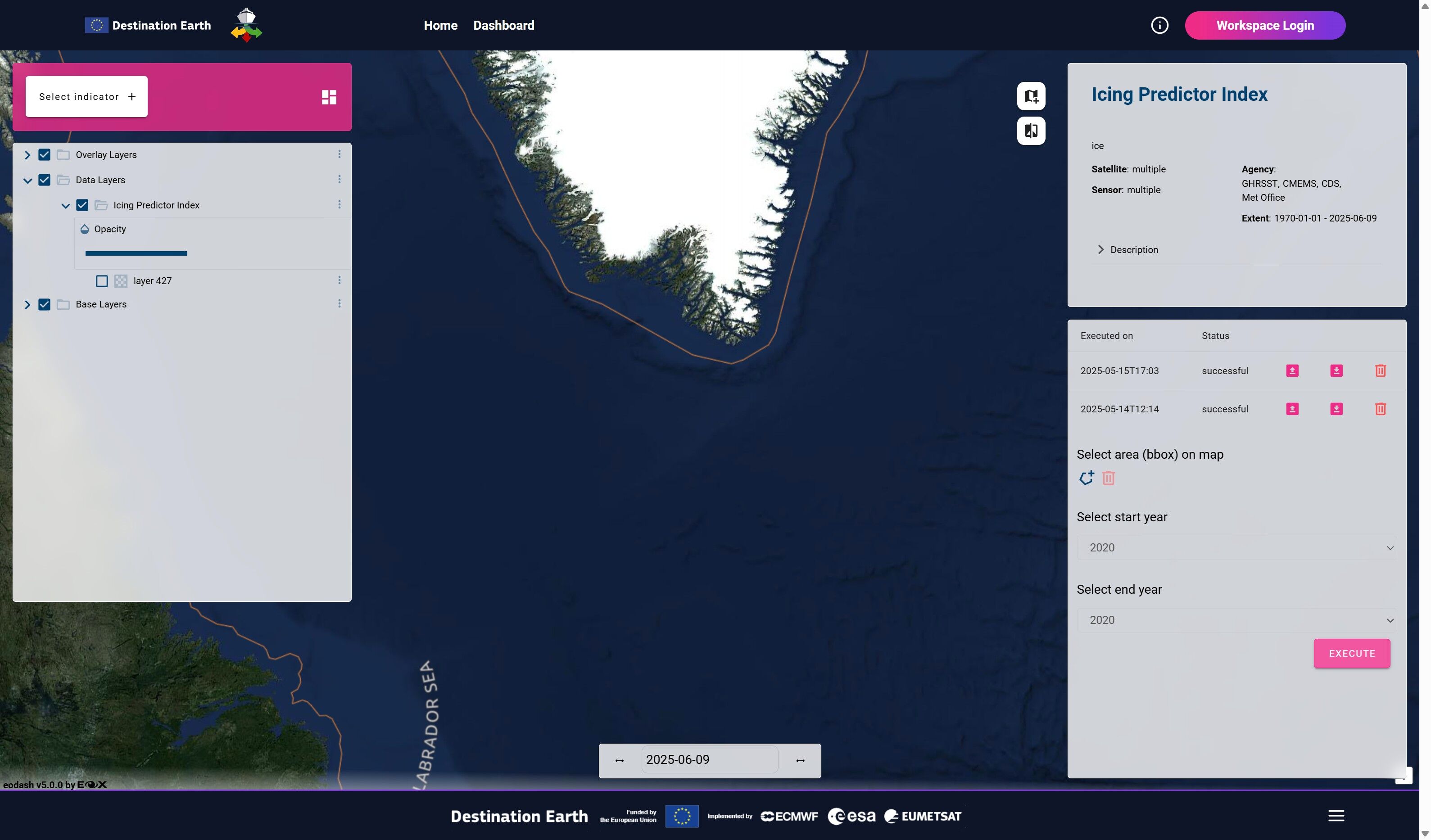

5. Click on “Execute”

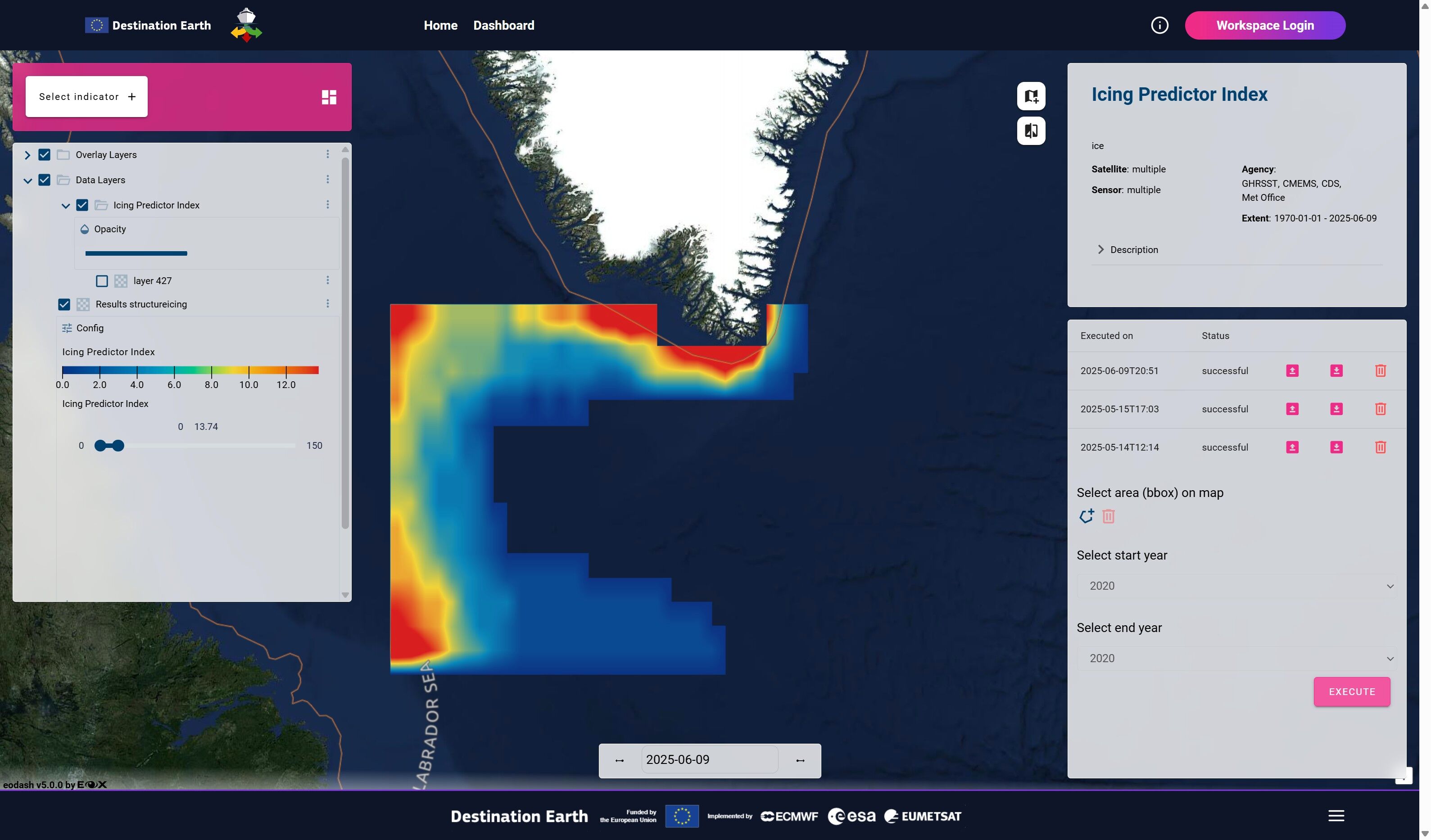

6. The results are shown on the map and the legend is shown in the bottom left panel.

7. Since the algorithm takes some time to run, previous results are available for retrieval.
