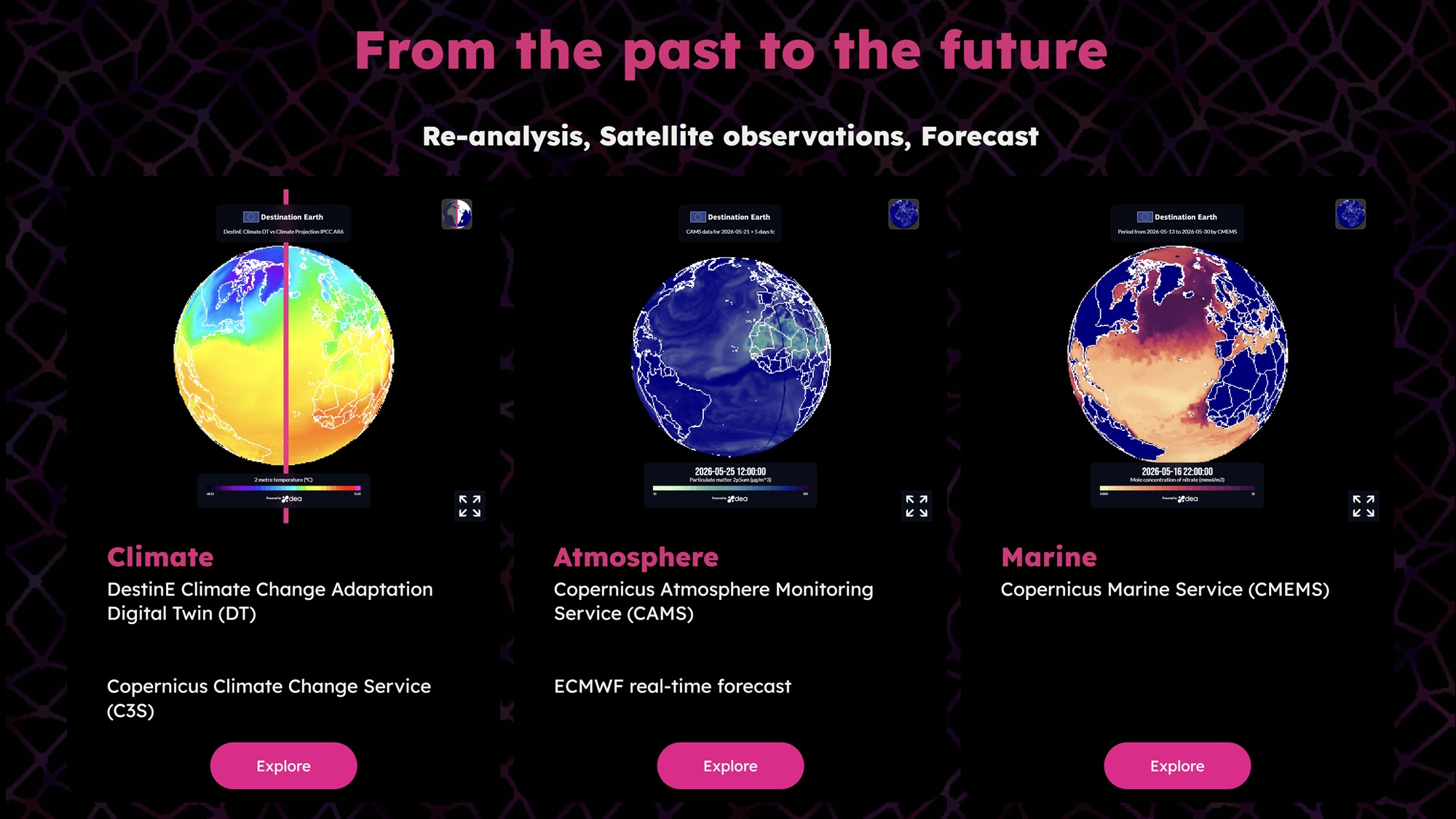

How-to integrate miniDEA with your web page
You can integrate miniDEA with your web page by adding the following code snippet to your HTML file:
<iframe src="https://mini.dea.destine.eu/app" title="Mini DEA" frameborder="0" allowfullscreen></iframe>
The above code will embed the miniDEA application in your web page.
You can customize the appearance and behavior of the embedded miniDEA instance as explained in the following sections.
Custom layers request
The list of layers shown on the globe can be customized by adding the layers parameter to the URL. The value of the layers parameter should be a comma-separated list of layer names. Layer names are listed in the table below (including the new DestinE Climate DT GEN 2 layers t2m_DE_M_HR_CDT2 and avg_tprate_DE_M_HR_CDT2):
Layer name |
Title |
Description |
|---|---|---|
aco2nee_ads |
Accumulated Carbon Dioxide Net Ecosystem Exchange (kg/m2) |
CAMS data for 2026-05-21 + 5 days fc |
avg_sithick_DE_D_CDT |
Time-mean sea ice thickness (m) |
1 year of DestinE Climate DT GEN 1 |
avg_tos_DE_D_CDT |
Time-mean sea surface temperature (K) |
1 year of DestinE Climate DT GEN 1 |
avg_tprate_DE_M_HR_CDT2 |
Time-mean total precipitation rate - GEN 2 (kg/m2/s) |
35 years of DestinE Climate DT GEN 2 model IFS-NEMO |
canada_wildfire_tcco |
Total column carbon monoxide (kg/m^2) |
53 days CAMS data from 2023-05-15 |
ch4_ads |
Methane - High Resolution (kg/kg) |
CAMS data for 2026-05-21 + 5 days fc |
ch4_c_ads |
Methane (ppbv) |
CAMS data for 2026-05-21 + 5 days fc |
chl_cmems |
Mass concentration of chlorophyll (mg/m3) |
Period from 2026-05-13 to 2026-05-30 by CMEMS |
co_ads |
Carbon monoxide (ppbv) |
CAMS data for 2026-05-21 + 5 days fc |
co2_ads |
Carbon dioxide mass mixing ratio (kg/kg) |
CAMS data for 2026-05-21 + 5 days fc |
d2m_DE_W_CDT |
2 metre dewpoint temperature (K) |
10 years of DestinE Climate DT GEN 1 |
d2m_era5 |
ERA5 2 metre dewpoint temperature (K) |
Reanalysis from 1940 to 2026-4 |
dissic_cmems |
Mole concentration of dissolved inorganic carbon (mol/m3) |
Period from 2026-05-13 to 2026-05-30 by CMEMS |
duaod550_ads |
Dust Aerosol Optical Depth at 550nm (-) |
CAMS data for 2026-05-21 + 5 days fc |
e_era5 |
ERA5 Evaporation (m of water equivalent) |
Reanalysis from 1940 to 2026-4 |
fco2nee_ads |
Flux of Carbon Dioxide Net Ecosystem Exchange (kg/m2/s x1e7) |
CAMS data for 2026-05-21 + 5 days fc |
fe_cmems |
Mole concentration of dissolved iron (10^-1 mol/m3) |
Period from 2026-05-13 to 2026-05-30 by CMEMS |
go3_ads |
Ozone (ppbv) |
CAMS data for 2026-05-21 + 5 days fc |
gtco3_ads |
GEMS Total column ozone (DU) |
CAMS data for 2026-05-21 + 5 days fc |
h2o_ads |
Water vapour (kg/kg) |
CAMS data for 2026-05-21 + 5 days fc |
hcho_ads |
Formaldehyde (ppbv) |
CAMS data for 2026-05-21 + 5 days fc |
hno3_ads |
Nitric acid (ppbv) |
CAMS data for 2026-05-21 + 5 days fc |
ist_cmems |
Sea ice surface temperature (°C) |
Period from 2026-05-13 to 2026-05-30 by CMEMS |
lai_hv_era5 |
ERA5 Leaf Area Index - high vegetation (m2/m2) |
Reanalysis from 1940 to 2026-4 |
lsp_era5 |
ERA5 Large-scale precipitation (m) |
Reanalysis from 1940 to 2026-4 |
mlotst_cmems |
Sigma theta ocean mixed layer thickness (m) |
Period from 2026-05-13 to 2026-05-30 by CMEMS |
mtg_fd:ir105_hrfi |
FCI HRFI IR10.5 μm Image - MTG - 0 degree |
Rectified Meteosat FCI Imagery by EUMETSAT |
mwd |
Mean wave direction (°) |
2026-05-21 10 days fc HRES |
no_ads |
Nitrogen monoxide (ppbv) |
CAMS data for 2026-05-21 + 5 days fc |
no2_ads |
Nitrogen dioxide (ppbv) |
CAMS data for 2026-05-21 + 5 days fc |
no3_cmems |
Mole concentration of nitrate (mmol/m3) |
Period from 2026-05-13 to 2026-05-30 by CMEMS |
nppv_cmems |
Sea biomass production of carbon (mg/m3/day) |
Period from 2026-05-13 to 2026-05-30 by CMEMS |
o2_cmems |
Sea dissolved molecular oxygen (mmol/m3) |
Period from 2026-05-13 to 2026-05-30 by CMEMS |
omaod550_ads |
Organic Matter Aerosol Optical Depth at 550nm (-) |
CAMS data for 2026-05-21 + 5 days fc |
pbo_cmems |
Sea water pressure at floor (dbar) |
Period from 2026-05-13 to 2026-05-30 by CMEMS |
ph_cmems |
Sea water ph reported on total (-) |
Period from 2026-05-13 to 2026-05-30 by CMEMS |
phyc_cmems |
Phytoplankton production of carbon (mmol/m3) |
Period from 2026-05-13 to 2026-05-30 by CMEMS |
pm1_ads |
Particulate matter 1um (µg/m^3) |
CAMS data for 2026-05-21 + 5 days fc |
pm10_ads |
Particulate matter 10um (µg/m^3) |
CAMS data for 2026-05-21 + 5 days fc |
pm2p5_ads |
Particulate matter 2p5um (µg/m^3) |
CAMS data for 2026-05-21 + 5 days fc |
po4_cmems |
Mole concentration of phosphate (mmol/m3) |
Period from 2026-05-13 to 2026-05-30 by CMEMS |
r |
Relative humidity (%) |
2026-05-21 10 days fc HRES |
r_DE_H_CDT |
Relative humidity (%) |
2 weeks of DestinE Climate DT GEN 1 |
r_era5 |
ERA5 Relative humidity (%) |
Reanalysis from 1940 to 2026-4 |
r_era5_ecv_anomaly |
ERA5 Relative humidity monthly anomaly (%) |
Reanalysis from 1979 to 2026-4 |
ro |
Runoff (m) |
2026-05-21 10 days fc HRES |
ro_era5 |
ERA5 Run off (m) |
Reanalysis from 1940 to 2026-4 |
sd_DE_W_CDT |
Snow depth (m of water equivalent) |
10 years of DestinE Climate DT GEN 1 |
sen2rgb_202407 |
Catalonia RGB from Sentinel-2 |
Catalonia True Colour Image from Sentinel-2 for August 2016 |
si_cmems |
Mole concentration of silicate (mmol/m3) |
Period from 2026-05-13 to 2026-05-30 by CMEMS |
siage_cmems |
Age of sea ice (years) |
Period from 2026-05-13 to 2026-05-30 by CMEMS |
siconc_cmems |
Sea ice area fraction (-) |
Period from 2026-05-13 to 2026-05-30 by CMEMS |
siconc_era5_ecv_anomaly |
ERA5 Sea Ice area fraction monthly anomaly (0-1) |
Reanalysis from 1979 to 2026-4 |
sithick_cmems |
Sea ice thickness (m) |
Period from 2026-05-13 to 2026-05-30 by CMEMS |
sivelo_cmems |
Sea ice speed (m/s) |
Period from 2026-05-13 to 2026-05-30 by CMEMS |
skt |
Skin temperature (K) |
2026-05-21 10 days fc HRES |
so_cmems |
Sea water salinity (ppt) |
Period from 2026-05-13 to 2026-05-30 by CMEMS |
so2_ads |
Sulphur dioxide (ppbv) |
CAMS data for 2026-05-21 + 5 days fc |
sp |
Surface pressure (Pa) |
2026-05-21 10 days fc HRES |
sp_era5 |
ERA5 Surface Pressure (Pa) |
Reanalysis from 1940 to 2026-4 |
spco2_cmems |
Sea surface partial pressure of CO2 (Pa) |
Period from 2026-05-13 to 2026-05-30 by CMEMS |
ssr_DE_H_CDT |
Surface net short-wave solar radiation (J/m2) |
1 month of DestinE Climate DT GEN 1 |
ssr_era5 |
ERA5 Surface net short-wave solar radiation (W/m2) |
Reanalysis from 1940 to 2026-4 |
sst_cmip6_historical |
CMIP6 Monthly mean of sea surface temperature [1850-2014] (degC) |
Climate Projection underpinning IPCC AR6 Interactive Atlas |
sst_era5 |
ERA5 Sea surface temperature (K) |
Reanalysis from 1940 to 2026-4 |
st |
Soil temperature (K) |
2024-11-12 10 days fc HRES |
str_DE_H_CDT |
Surface net long-wave thermal radiation (J/m2) |
1 month of DestinE Climate DT GEN 1 |
t |
Temperature (K) |
2026-05-21 10 days fc HRES |
t_cmip6_historical |
CMIP6 Monthly mean of daily mean temperature [1850-2014] (degC) |
Climate Projection underpinning IPCC AR6 Interactive Atlas |
t_CMIP6_ssp370 |
Monthly mean of daily mean temperature |
IPCC AR6 Interactive Atlas (CMIP6 - SSP3-7.0) |
t_DE_H_CDT |
Temperature (K) |
2 weeks of DestinE Climate DT GEN 1 |
t_era5 |
ERA5 Temperature (K) |
Reanalysis from 1940 to 2026-4 |
t2m_DE_H_CDT |
2 metre temperature (K) |
1 month of DestinE Climate DT GEN 1 |
t2m_DE_M_HR_CDT2 |
2 metre temperature - GEN 2 (K) |
35 years of DestinE Climate DT GEN 2 model IFS-NEMO |
t2m_DE_W_CDT |
2 metre temperature (K) |
10 years of DestinE Climate DT GEN 1 |
t2m_era5 |
ERA5 2 metre temperature (K) |
Reanalysis from 1940 to 2026-4 |
t2m_era5_ecv_anomaly |
ERA5 2m temperature monthly anomaly (deg_C) |
Reanalysis from 1979 to 2026-4 |
talk_cmems |
Sea water alkalinity expressed as mole (mol/m3) |
Period from 2026-05-13 to 2026-05-30 by CMEMS |
tc_ch4_ads |
Total column methane (kg/m^2) |
CAMS data for 2026-05-21 + 5 days fc |
tc_h2o_ads |
Total column of water vapour (kg/m^2) |
CAMS data for 2026-05-21 + 5 days fc |
tc_hno3_ads |
Total column nitric acid (10^15 molecules/cm^2) |
CAMS data for 2026-05-21 + 5 days fc |
tc_no_ads |
Total column nitrogen monoxide (10^15 molecules/cm^2) |
CAMS data for 2026-05-21 + 5 days fc |
tcc_DE_H_SR_CDT |
Total cloud cover std-res (0-1) |
2 weeks of DestinE Climate DT GEN 1 |
tcch4_ads |
CH4 column-mean molar fraction (ppb) |
CAMS data for 2026-05-21 + 5 days fc |
tcco_ads |
Total column Carbon monoxide (10^18 molecules/cm^2) |
CAMS data for 2026-05-21 + 5 days fc |
tcco2_ads |
CO2 column-mean molar fraction (ppm) |
CAMS data for 2026-05-21 + 5 days fc |
tchcho_ads |
Total column Formaldehyde (10^15 molecules/cm^2) |
CAMS data for 2026-05-21 + 5 days fc |
tcno2_ads |
Total column Nitrogen dioxide (10^15 molecules/cm^2) |
CAMS data for 2026-05-21 + 5 days fc |
tcso2_ads |
Total column Sulphur dioxide (10^15 molecules/cm^2) |
CAMS data for 2026-05-21 + 5 days fc |
thetao_cmems |
Sea water potential temperature (°C) |
Period from 2026-05-13 to 2026-05-30 by CMEMS |
toverpressure |
3D Temperature (K) |
2026-05-21 12:00:00 fc HRES |
tp |
Total precipitation (m) |
2026-05-21 10 days fc HRES |
tp_DE_H_CDT |
Total precipitation (m) |
1 month of DestinE Climate DT GEN 1 |
tp_era5 |
ERA5 Total precipitation (m) |
Reanalysis from 1940 to 2026-4 |
tp_era5_ecv_anomaly |
ERA5 Total precipitation monthly anomaly (m) |
Reanalysis from 1979 to 2026-4 |
tprate_DE_H_CDT |
Total precipitation rate (mm/hr) |
1 month of DestinE Climate DT GEN 1 |
u |
U component of wind (m/s) |
2026-05-21 10 days fc HRES |
uo_cmems |
Eastward sea water velocity (m/s) |
Period from 2026-05-13 to 2026-05-30 by CMEMS |
usi_cmems |
Eastward sea ice velocity (m/s) |
Period from 2026-05-13 to 2026-05-30 by CMEMS |
v |
V component of wind (m/s) |
2026-05-21 10 days fc HRES |
VHM0_cmems |
Sea surface wave significant height (m) |
Period from 2026-05-13 to 2026-05-31 by CMEMS |
VHM0_WW_cmems |
Sea surface wind wave significant height (m) |
Period from 2026-05-13 to 2026-05-31 by CMEMS |
VMDR_cmems |
Sea surface wave from direction (deg) |
Period from 2026-05-13 to 2026-05-31 by CMEMS |
vo_cmems |
Northward sea water velocity (m/s) |
Period from 2026-05-13 to 2026-05-30 by CMEMS |
vsi_cmems |
Northward sea ice velocity (m/s) |
Period from 2026-05-13 to 2026-05-30 by CMEMS |
VTM01_WW_cmems |
Sea surface wind wave mean period (s) |
Period from 2026-05-13 to 2026-05-31 by CMEMS |
winddirection |
Wind direction (°) |
2026-05-21 10 days fc HRES |
windspeed |
Wind speed (m/s) |
2026-05-21 10 days fc HRES |
windspeed_DE_H_CDT |
10 m wind speed (m/s) |
1 month of DestinE Climate DT GEN 1 |
windspeed_era5 |
ERA5 10 m wind speed (m/s) |
Reanalysis from 1940 to 2026-4 |
wo_cmems |
Upward sea water velocity (m/s) |
Period from 2026-05-13 to 2026-05-30 by CMEMS |
zos_cmems |
Sea surface height above geoid (m) |
Period from 2026-05-13 to 2026-05-30 by CMEMS |
An example of a custom layers request is:
<iframe src="https://mini.dea.destine.eu/app/?layers=zos_cmems,windspeed,t2m_era5_ecv_anomaly&showCompare=false" title="Mini DEA" frameborder="0" allowfullscreen></iframe>
Hide country boundaries
The country boundaries shown on the globe can be hidden by adding the showBoundaries parameter to the URL and setting its value to false. An example of a custom URL to hide country boundaries is:
<iframe src="https://mini.dea.destine.eu/app/?showBoundaries=false" title="Mini DEA" frameborder="0" allowfullscreen></iframe>

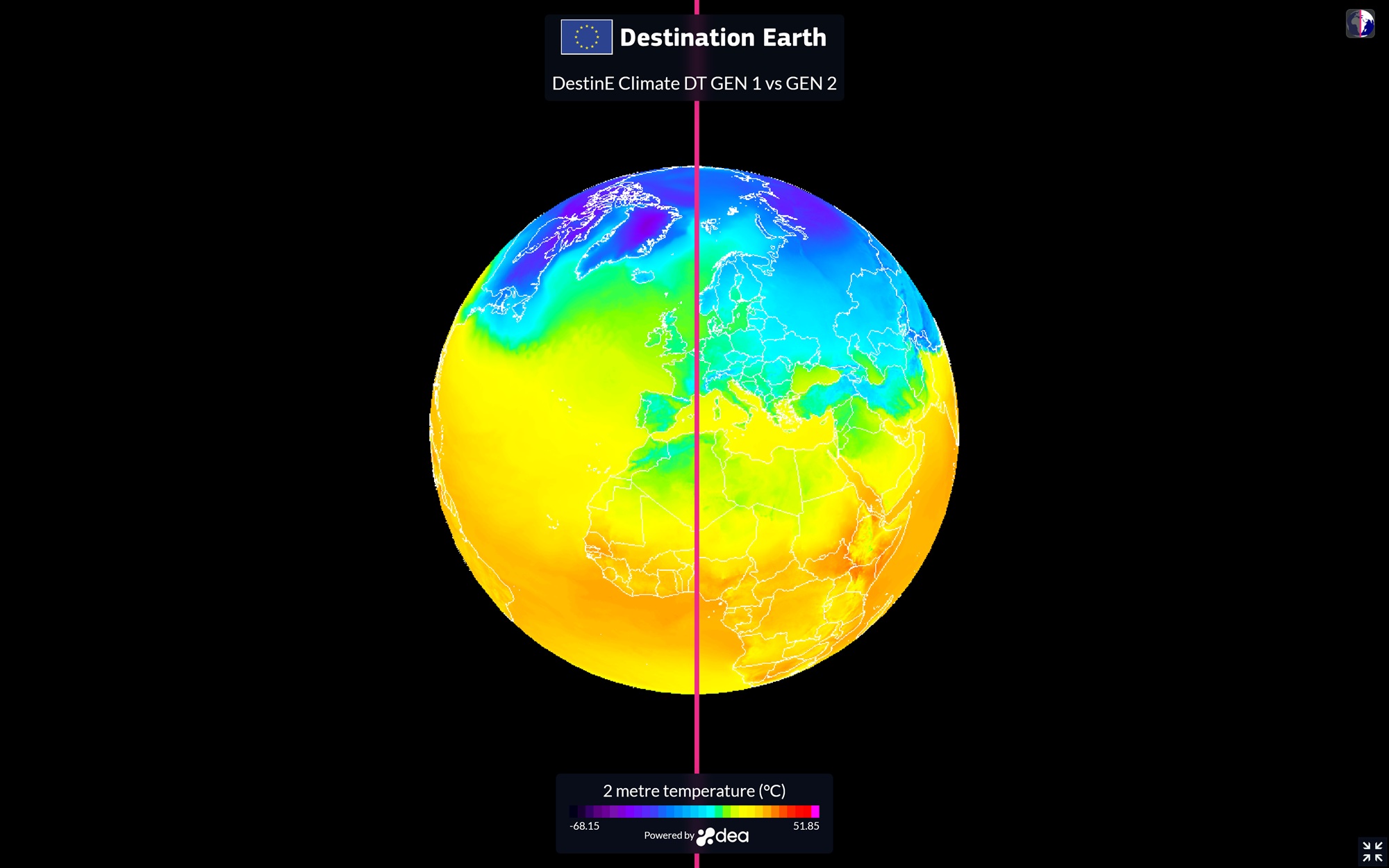

Customize the compararison layer
The custom compare layer can be requested by specifying the layer names as a comma-separated list, e.g. t (temperature forecast) and r (relative humidity forecast). Please note that the parameter is accepted only if it contains 2 layers. An example of a custom URL to show the comparison layer with t and r is:
<iframe src="https://mini.dea.destine.eu/app/?layers=t,r&compareLayers=t,r" title="Mini DEA" frameborder="0" allowfullscreen></iframe>
The comparison layer shown on the globe can be hidden by adding the `showCompare` parameter to the URL and setting its value to `false`. An example of a custom URL to hide the compare layer is:
<iframe src="https://mini.dea.destine.eu/app/?showCompare=false" title="Mini DEA" frameborder="0" allowfullscreen></iframe>
Other customisation options for the compare layer include:
Disable time comparison for the compare layers by adding the isTimeCompare parameter to the URL and setting its value to false. An example of a custom URL to disable time comparison for the compare layers is:
<iframe src="https://mini.dea.destine.eu/app/?layers=t,r&compareLayers=t,r&isTimeCompare=false" title="Mini DEA" frameborder="0" allowfullscreen></iframe>
Custom compare layers title:
<iframe src="https://mini.dea.destine.eu/app/?layers=t,r&compareLayers=t,r&compareLayersTitle=Temperature vs Relative Humidity (forecast)&isTimeCompare=false" title="Mini DEA" frameborder="0" allowfullscreen></iframe>
Enjoy exploring the various options and features of miniDEA by customizing the URL parameters to suit your needs!
